Product Overview

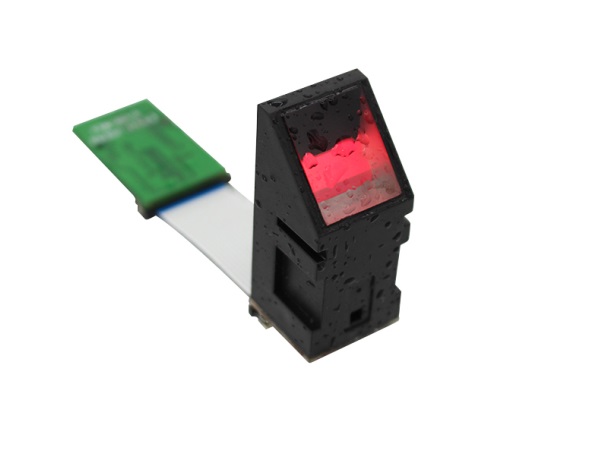

The  FS-01 is a high quality optical fingerprint sensor module which has integrated fingerprint optical sensor, CMOS image sensor, CPU, and Flash memory together,it is designed for developer and manufacturers for integration with various applications such as access control systems, time attendance terminals, mobile devices, safes, door locks ,notebooks, tablets, time and attendance terminals and card readers and so on custom application products .




APPLICATION EXAMPLES:
• Time and attendance terminals
• Smart card reader
• Physical access control terminals
• Portable hard drives
• Mobile devices

MAIN FUNCTIONS:
•  Communication interface :UART
•  Optic sensor is reliable and Low-cost, High ESD Protection
•  1:N Identification (One-to-Many)
•  1:1 Verification (One-to-One)
•  High speed fingerprint identification algorithm engine
•  Self study function
•  Fingerprint template data read from /write to FLASH memory function
•  Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature with captured fingerprint (Specially designed for fingerprint stored in IC card)
•  Identify Downloaded Feature with Captured fingerprint
•  Security Level setting
•  Able to set Baud Rate/ Device ID/Device Password

Electric Parameters
Operating Voltage	5V (Typical Value ) Range: 4.5V-6.0V
Operating Current	60mA (Typical Value), Peak Current: <100mA   30uA (Sleep Mode)
Fingerprint Image Input Time	<0.2S
Operating Temperature	-10℃-+60℃
Store Temperature	-20℃－+80℃
Operating/Store Humidity	20%—90% /16%—95%
Performance Parameters
Fingerprint Sensor	Optical Sensor
Sensor Dimensions:	21*17.4mm
Effective Image Size	256*288 pixels
Image Size	256*288 pixel
Image Pixel	500DPI
Matched Mode	Compared Mode (1:1) Search Mode (1:N) (900 PCS Full registration) < 1 second
Fingerprint Features	496 bytes (Extracting Time < 0.4 second)
Collected Mode	Plane Press
Storage Capacity	900 PCS
Security Level	Five level (from low to high: 1, 2, 3, 4, 5)
False Accept Rate (FAR)	<0.001% (Security Level: 3)
False Reject Rate (FRR)	<0.1 % (Security Level: 3)
Search Time	<1.0 second (When 1:1000, average)
Communication Interface	UART (TTL Logic level) or USB1.1/2.0 compatibility
Communication Baud Rate (UART)	Parity = NONE, Stop Bit = 1, Supportable Baud Rate: 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600 Default (38400)
